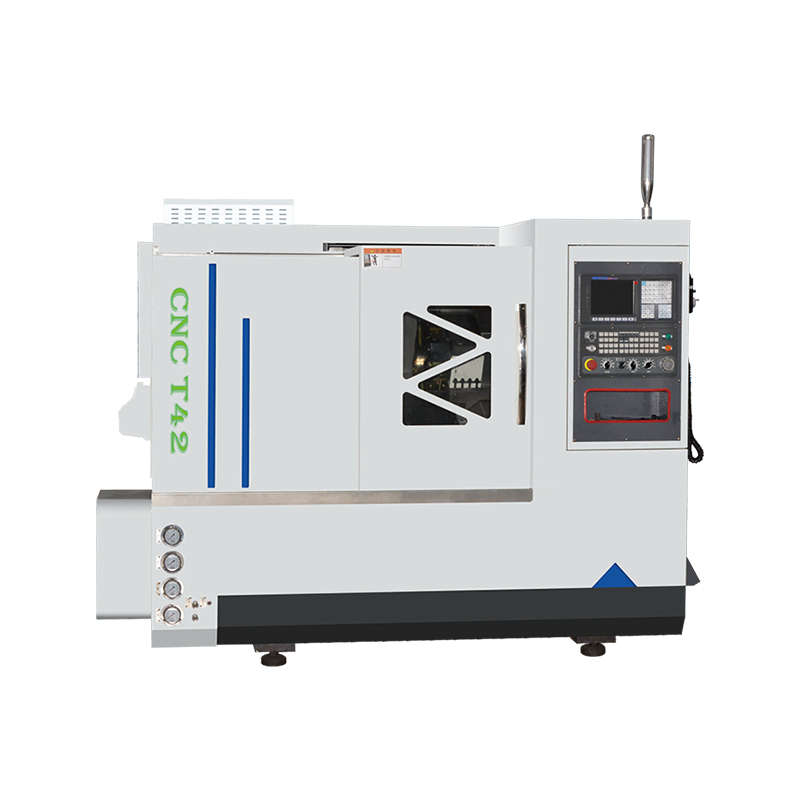

The true sloping bed, headbox, turret and tailstock have been designed in a single bed, a design that greatly reduces the effects of thermal expansion. This design provides greater accuracy than if the headbox and tailstock were positioned horizontally with the Z axis and the X axis angled with the turret; in addition, the warm-up time is reduced and rigidity is increased.The sturdy base reduces vibration and noise, while the application of a full linear rail provides a smoother surface for increased accuracy and speed. The design consumes energy low and does not require much adjustment.

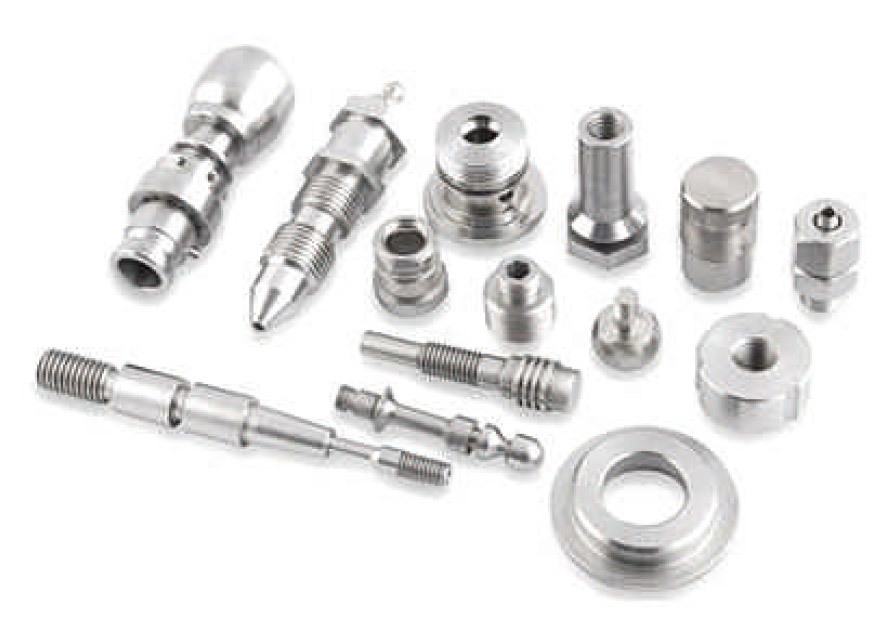

This machine tool is most suitable for processing fields; aviation equipment, auto parts,valves, non-ferrous metals, disc parts, large bearing rings, precision long thick shafts.
| Project | unit | Reference data | |
| Work Fan | Max. turning diameter | mm | Ф500 |
| Max.machining diameter of the pallet | mm | Ф300 | |
| Max. machining diameter | mm | Ф380 | |
| itinerary | Max. Stroke X-axis | mm | 200 |
| Max. Stroke Z-axis | mm | 420 | |
| Tailstock stroke | mm | 250 | |
| Main axis | Spindle through hole diameter | mm | Ф56 (Ф170 spindle unit)/62 mechanical spindle |
| Pull tube through hole diameter | mm | Ф46 (Ф170 spindle unit) /52 mechanical spindle | |
| Feed | Fast moving speed X-axis | mm/min | 20000 |
| Fast moving speed Z axis | mm/min | 20000 | |
| other | Spindle speed range | r/min | 50-3500 |
| Clamping method | — | Hydraulic 6 inch chuck | |
| Tool holder type | —— | 80-12 station hydraulic servo turret | |
| Main motor power | Kw | 7.5Kw servo main motor | |
| Tailstock | — | Hydraulic Mt5 | |
| Dimensions(L*W*H) | mm | 2450x1670x1900 | |
| Weight (about) | T | 3.0 | |
Note: "/" indicates that this configuration is optional According to customer needs, machine configuration is optional
