Guangshu (Guangzhou) Xindai (Taiwan) KND (Beijing)

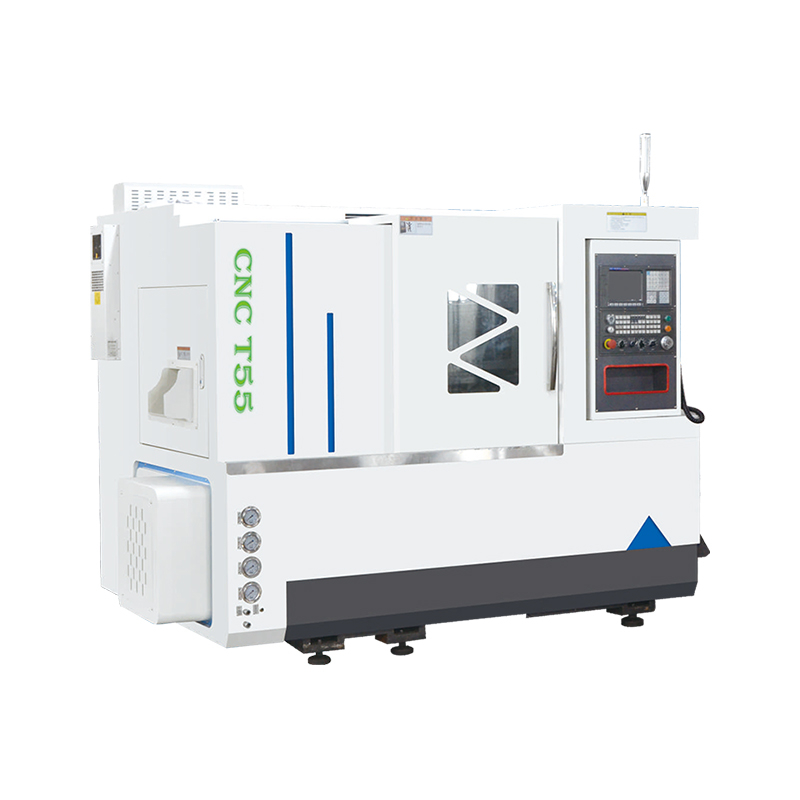

Suitable for: bearing rings, discs, short shafts and other high-precision heavy cutting
1, high speed, high precision hydraulic rotary cylinder, precision collet and high rigidity precision power chuck configuration, to improve the ability to cut tough materials and powerful cutting.
2, 35 ° large tilt bed, conducive to workpiece up and down and chip discharge.
3、Both directions use super heavy-duty ball linear guide Both have strong rigidity and reduce the wear and tear of the machine It can guarantee the machining accuracy of the machine for a long time.
4、Both directions use large ball screws and large The large ball screw support bearings ensure the long-term stability of the machine.
5、Large stroke row of tool holders, the number of tool positions, so that repeatable tool change error to the minimum, high speed and accurate tool change The machine saves a lot of processing time.
6、Large volume base, convenient for manual cleaning of iron chips.
7、Full protection machine tool, improve the waterproof and chip-proof ability. The machine is fully protected against water and chips.
This machine tool is most suitable for processing fields; aviation equipment, auto parts,valves, non-ferrous metals, disc parts, large bearing rings, precision long thick shafts.
| Project | unit | Reference data | |
| Work Fan | Max. turning diameter | mm | Ф400 |
| Max.machining diameter of the pallet | mm | Ф170 | |
| Max. machining diameter | mm | Ф300 | |
| itinerary | Max. Stroke X-axis | mm | 160 |
| Max. Stroke Z-axis | mm | 320 | |
| Tailstock stroke | mm | 150 | |
| Main axis | Spindle through hole diameter | mm | Ф56 (Ф170 spindle unit)/62 mechanical spindle |
| Pull tube through hole diameter | mm | Ф46 (Ф170 spindle unit) /52 mechanical spindle | |
| Feed | Fast moving speed X-axis | mm/min | 20000 |
| Fast moving speed Z axis | mm/min | 20000 | |
| other | Spindle speed range | r/min | 50-4500 |
| Clamping method | — | Hydraulic 6 inch chuck | |

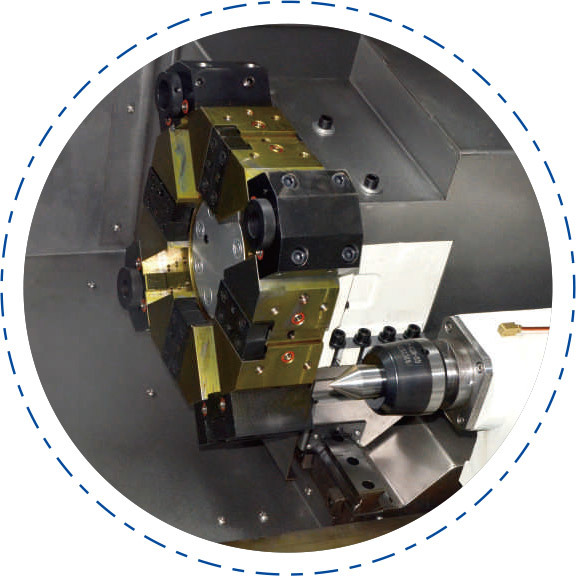

| Tool holder type | —— | 63-8 station hydraulic servo turret | |
| Main motor power | Kw | 5.5Kw servo main motor | |
| Tailstock | — | Hydraulic Mt5 | |
| Dimensions(L*W*H) | mm | 2000x1400x1600 | |
| Weight (about) | T | 2.4 | |
Note: "/" indicates that this configuration is optional According to customer needs, machine configuration is optional
