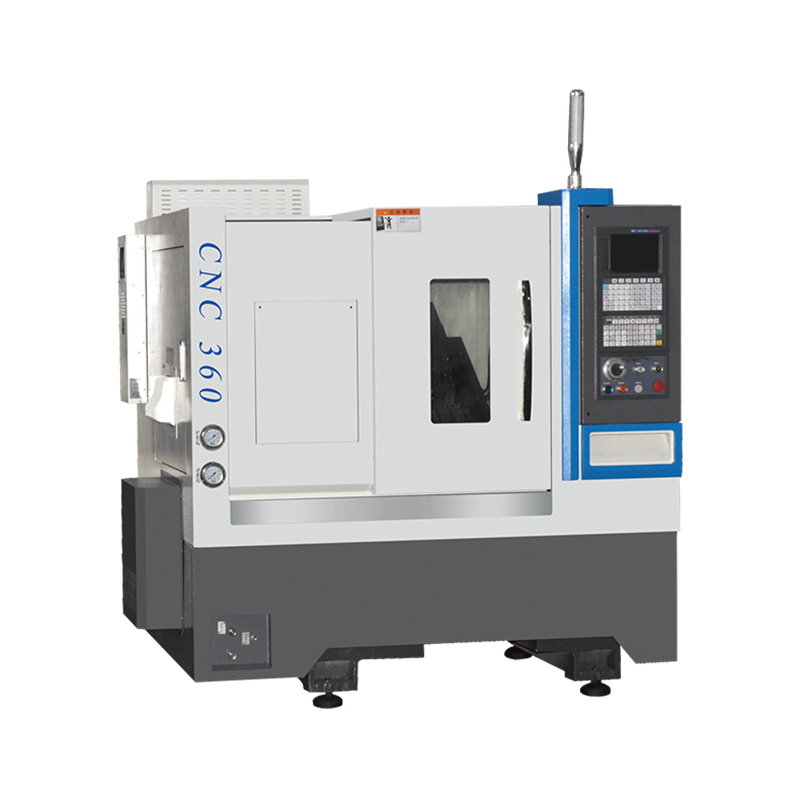

Designed with space saving for the precision machining of small parts lathes, the spindle motors are frequency conversion motors or servo motors that with small size, large stroke, high spindle speed, high feed precision, easy operation, easy maintenance, smooth chip evacuation, etc. making it a truly successful ultra-compact CNC lathe. In the field of high precision small parts machining, it has changed the status quo of having to rely on The status quo of imported machine tools has been changed.

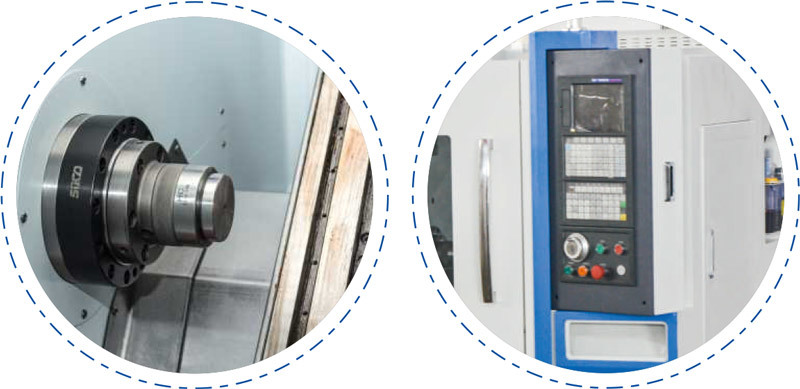

1、The spindle of the machine tool adopts spindle unit, with high precision of rotation high rigidity and long-lasting accuracy of the spindle high rigidity and long-lasting accuracy This ensures high rigidity and long-lasting accuracy, and greatly improves productivity. Optional imported spindle units are available. The spindle runout is < 2μm.
2、All feed axes are servo-driven and imported ball screws are used. ball screw to ensure machining accuracy and long time precision Maintain.
3、The bed base is cast in one piece to enhance the rigidity of the machine. The bed base is cast in one piece to enhance the rigidity of the machine.
4、Modular design and manufacturing, the overall structure is tight The modular design and manufacturing, the overall structure is tight and cost-effective.
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. It has particularly good processing of small parts, precision parts and non-ferrous metals.

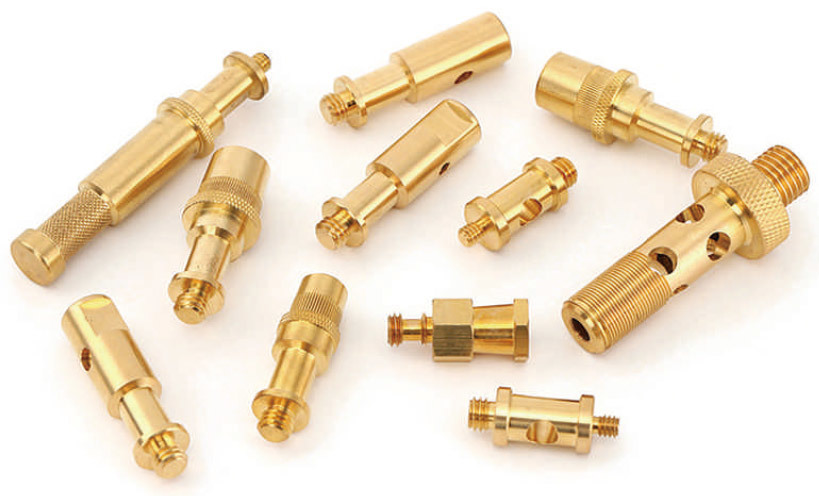

Small hardware parts: steel, stainless steel, copper and aluminum
Short shaft, disc parts: precision shaft pins, bushings, spindles, rings
Precision thread: high-grade threaded joint, precision spindle lock cap, tooth compound nut
| Project | unit | Reference data | |
| Work Fan | Max. turning diameter | mm | Ф410 |
| Max.machining diameter of the pallet | mm | Ф120 | |
| Max. machining diameter | mm | Ф410 | |
| itinerary | Max. Stroke X-axis | mm | 600 |
| Max. Stroke Z-axis | mm | 350 | |
| Main axis | Spindle through hole diameter | mm | Ф49/Ф140 Spindle units |
| Pull tube through hole diameter | mm | Ф36 | |
| Feed | Fast moving speed X-axis | mm/min | 20000 |
| Fast moving speed Z axis | mm/min | 20000 | |
| other | Spindle speed range | r/min | 50-4500 |
| Clamping method | — | Hydraulic collet holders | |
| Tool holder type | — | Row of tool holders | |
| Main motor power | Kw | 4 servo main motor | |
| Tailstock | — | none | |
| Dimensions(L*W*H) | mm | 1900x1360x1850 | |
| Weight (about) | T | 1.6 | |
Note: "/" indicates that this configuration is optional According to customer needs, machine configuration is optional
