Guangshu (Guangzhou) Xindai (Taiwan) KND (Beijing)

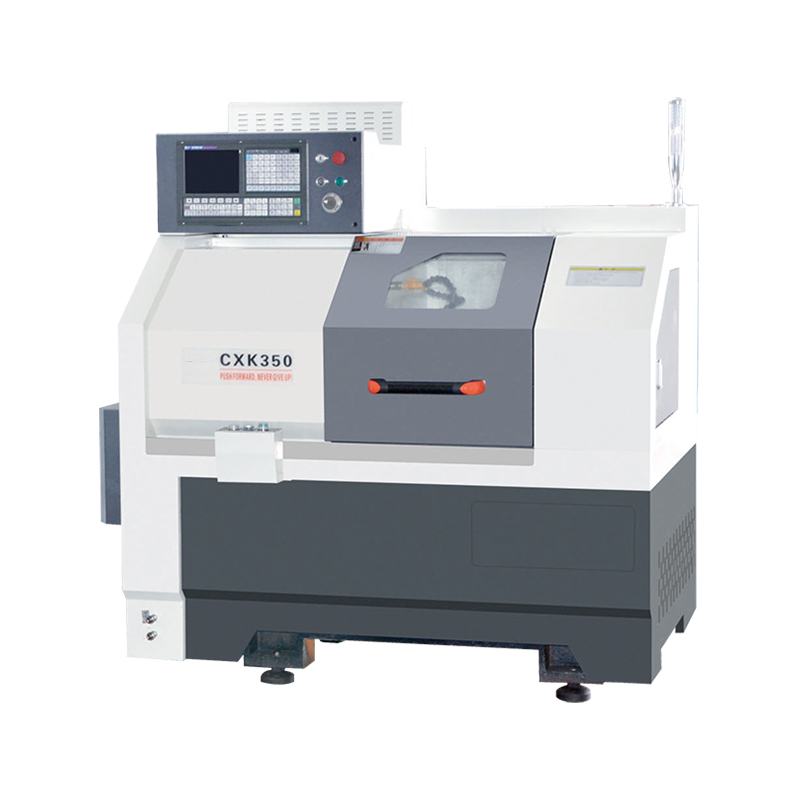

The machine tool is fully enclosed with generous appearance, humanized structure, easy to operate and use, spindle grease lubrication, maintenance-free;

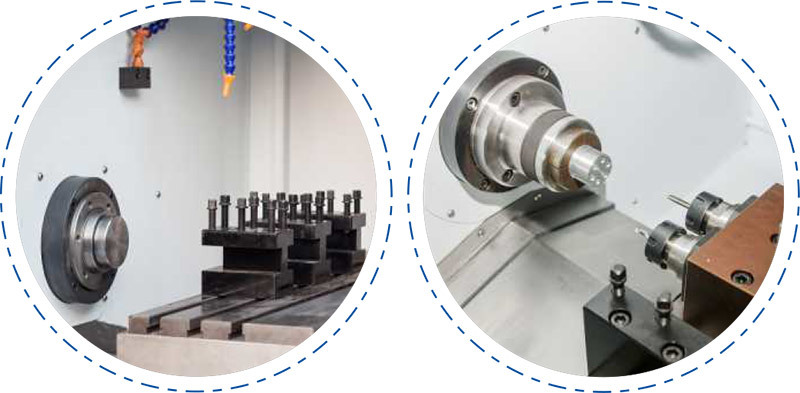

It adopts linear guide rail configuration, combined with supporting angle contact shaft, low noise, fast speed, long life, dust/water proof design;
X-direction super large stroke, can be set to install more accessories such as row knives, Z-direction screw center, uniform force.
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. It has particularly good processing of small parts, precision parts and non-ferrous metals.

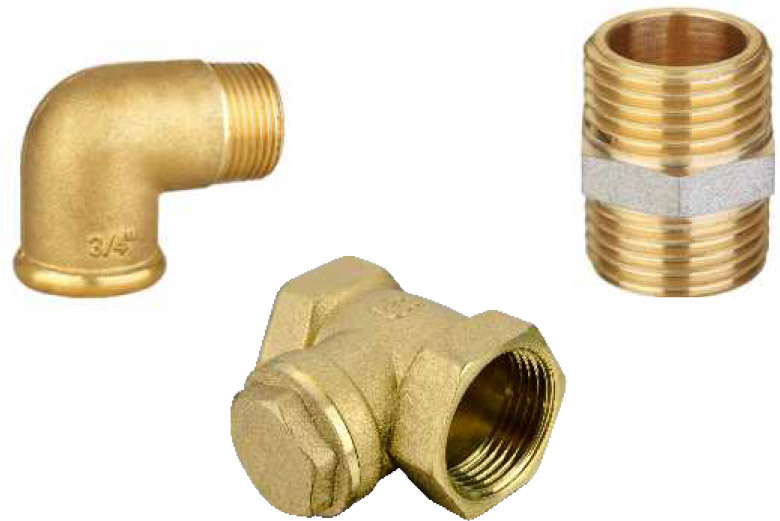

Small hardware parts: steel, stainless steel, copper and aluminum
Short shaft, disc parts: precision shaft pins, bushings, spindles, rings
Precision thread: high-grade threaded joint, precision spindle lock cap, tooth compound nut
| Project | unit | Reference data | |
| Work Fan | Max. turning diameter | mm | Ф320 |
| Max.machining diameter of the pallet | mm | Ф120 | |
| Max. machining diameter | mm | Ф320 | |
| itinerary | Max. Stroke X-axis | mm | 600 |
| Max. Stroke Z-axis | mm | 320 | |
| Main axis | Spindle through hole diameter | mm | Ф49 |
| Pull tube through hole diameter | mm | Ф42 | |
| Feed | Fast moving speed X-axis | mm/min | 20000 |
| Fast moving speed Z axis | mm/min | 20000 | |
| other | Spindle speed range | r/min | 50-3000/140 spindle unit 4500 |
| Clamping method | —— | Pneumatic/hydraulic (optional) | |
| Tool holder type | — | Row tool holder/four-station electric tool holder | |
| Main motor power | Kw | 4 | |
| Tailstock | — | none | |
| Dimensions(L*W*H) | mm | 1720x1290x1780 | |
| Weight (about) | T | 1.2 | |
Note: "/" indicates that this configuration is optional According to customer needs, machine configuration is optional
