Guangshu (Guangzhou) Xindai (Taiwan) KND (Beijing)

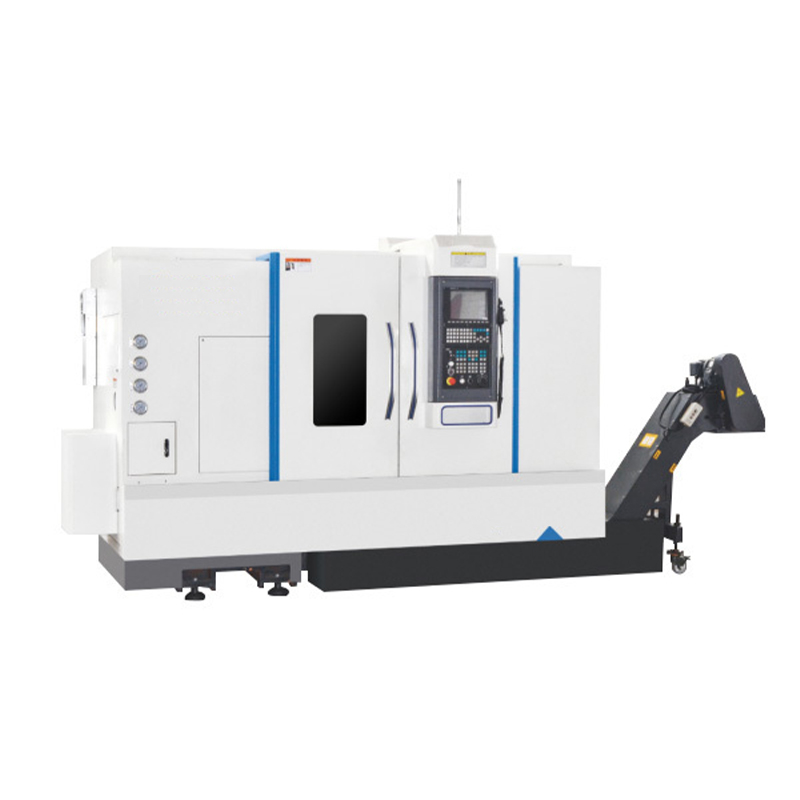

1. The CNC-TK55 lathe adopts a 35° inclined layout and an integrated bed base structure, which greatly improves the bending and torsional rigidity of the lathe in operation.
2. The CNC-TK55 CNC lathe is equipped with a mechanical spindle as standard. The spindle bearing adopts high precision spindle bearing and the maximum spindle speed can reach 2000r/min. The spindle drive is equipped with 15KW spindle drive motor as standard. The speed ratio between the main motor and spindle is 1.6:1 (i.e. maximum spindle speed of 1250r/min).
3. The CNC-TK55 CNC lathe uses Taiwan Yintai linear slides and ball screws as standard, and the use of Taiwan TBI bearings enables the machine to move at a speed of 16m/min, greatly improving the machining efficiency.
4. CNC-TK55 CNC lathe is equipped with a knuckle-type tool holder as standard, and can be equipped with a Taiwan hydraulic turret as an option.
| Machinery Standards | Name | Unit | CNC-TK55 |
| Processing range | Maximum bed rotation diameter | mm | 550 |
| Maximum processing diameter | mm | 260 | |
| Maximum machining diameter on the tool holder | mm | 200 | |
| Maximum processing length | mm | 300 | |
| Maximum bar through-hole diameter | mm | Ф75 | |
Spindle cylinders Chuck parameters | Nose of main shaft | / | A2-8 |
| Spindle through-hole diameter | mm | Ф86 | |
| Maximum spindle speed | rpm | 2000 | |
| Spindle motor power | kw | 15 | |
| Hydraulic cylinders/chucks | / | 1075 Rotary cylinder / 10 | |
X/Z axis feed Parameters | X motor power | kw | 3.5KW 22Nm |
| Z motor power | kw | 3.5KW 22Nm | |
| X-axis travel | mm | 300 | |
| Z-axis travel | mm | 600 | |
| X/Z axis rapid traverse | mm | 16/16 | |
| Positioning accuracy | mm | ±0.003 | |
| Repeat positioning accuracy | mm | ±0.005 | |
| Rail type | / | Rail | |
| Knife position | Tooling stations | pcs | Double boring tool holders (as per drawings provided by us) |
Note: "/" indicates that this configuration is optional According to customer needs, machine configuration is optional
