Guangshu (Guangzhou) Xindai (Taiwan) KND (Beijing)

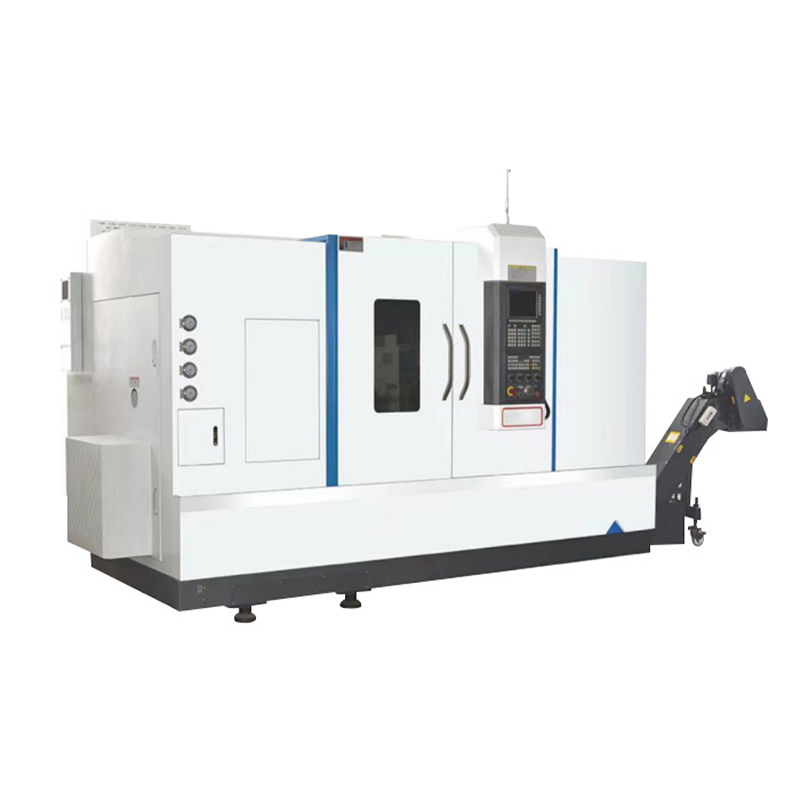

1. The CNC-T2000 lathe adopts a 35° inclined layout and an integrated bed base structure, which greatly improves the bending and torsional rigidity of the lathe in operation.
2. The CNC-T2000 CNC lathe is equipped with Guangdong sleeve spindle as standard. The spindle bearings are German high precision spindle bearings, the maximum spindle speed can reach 3000r/min, and the spindle drive is equipped with 15KW spindle drive motor as standard.
3. The CNC-T2000 CNC lathe uses Taiwan Yintai linear slides and ball screws as standard, and the use of Taiwan TBI bearings enables the machine to move at a speed of 20m/min, greatly improving the processing efficiency.
4. CNC-T2000 CNC lathe is equipped with a knuckle-type tool holder as standard, and can be equipped with a wide range of hydraulic turret as an option.
5. CNC-T2000 CNC lathe is equipped with a wide range of digital control systems as standard, with servo motors for feed drive.
| machine standard | Name | Unit | CNC-T2000 |
Processing range Parameters | Maximum Rotating Diameter | mm | 650 |
| Maximum processing diameter | mm | 600 | |
| Maximum machining diameter on the tool holder | mm | 360 | |
| Maximum processing length | mm | 2000 | |
| Maximum bar through-hole diameter | mm | Ф75 | |
Spindle cylinders Chuck parameters | Nose of main shaft | / | A2-11 |
| Spindle through-hole diameter | mm | Ф105 | |
| Maximum spindle speed | rpm | 2500 | |
| Spindle motor power | kw | 15KW | |
| Hydraulic cylinders/chucks | / | 1091回转油缸/三爪卡盘 | |
X/Z axis feed Parameters | X motor power | kw | 3.1 |
| Z motor power | kw | 3.1 | |
| X-axis travel | mm | 300 | |
| Z-axis travel | mm | 2000 | |
| X/Z axis rapid traverse | mm | 20/20 | |
| Positioning accuracy | mm | ±0.003 | |
| Repeat positioning accuracy | mm | ±0.005 | |
| Rail type | / | Rail | |
Turret Parameters | Tooling stations | pcs | BMT65-12-station hydraulic servo-powered turret, power tool holder (4 x 0°, 4 x 90°) |
Note: "/" indicates that this configuration is optional According to customer needs, machine configuration is optional
